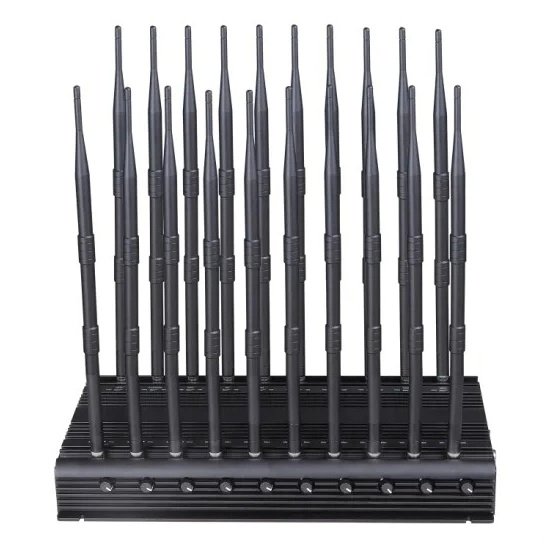

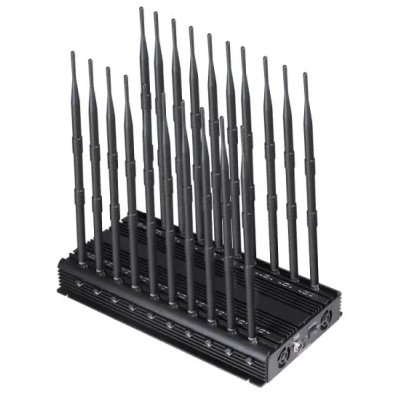

This 5G cell phone signal jammer is equipped with 20 antennas, has full-band jamming functions, and supports 3.5G, 3.7G, 5G WIFI, as well as GSM, 3G, 4G, VHF, UHF, Wi-Fi, GPS (L1, L2, L5) and other signals, the jamming radius can be up to 60 meters, the total output power is 52W, and the performance is strong and stable.
This desktop jammer supports in-vehicle use and comes with a dedicated vehicle charger, allowing for flexible use in fixed locations or mobile environments. It has five built-in high-efficiency cooling fans with low noise level and allows continuous operation for a long period of time throughout the day without any performance degradation due to overheating.
It can also be switched on or off by remote control. At the same time, each frequency band can be switched on or off independently. The operation is flexible and efficient. It is suitable for various scenarios such as conference rooms and classrooms, museums, gas stations, etc., and can effectively prevent exam cheating, meeting information leakage or other communication interference problems. The standard product configuration includes a multi-function jammer, a power supply, a car charger and 20 antennas, and provides a one-year warranty service to ensure that users have no worries.
Technical specifications:
Interference frequencies:
| Output port | Frequency | Set average out power |
| CDMA | 851-894 MHz | 35 dBm |
| GSM | 925-960 MHz | 35 dBm |
| DCS/PCS | 1805-1990 MHz | 33 dBm |
| 868 | 868 MHz | 35 dBm |
| 3G | 2110-2170 MHz | 30 dBm |
| WIFI2.4G | 2400-2500 MHz | 30 dBm |
| GPSL1 | 1575 MHz | 32 dBm |
| 4G LTE | 790-826 MHz or 725-770 MHz | 34 dBm |
| 4G WIMAX | 2620-2690 MHz or 2345-2400 MHz | 30 dBm |
| Lojack | 167-175 MHz | 30 dBm |
| UHF | 400-470 MHz | 34 dBm |
| VHF | 135-174 MHz | 34 dBm |
| GPSL2-L5 | 1170-1230 MHz | 32 dBm |
| GPSL3-L4 | 1370-1390 MHz | 32 dBm |
| 315 | 315 MHz | 34 dBm |
| 433 | 433 MHz | 34 dBm |
| 3.5G (5G cell phone) | 3400-3600 MHz | 33 dBm |
| 3.7G (5G cell phone) | 3600-3800 MHz | 33 dBm |
| 5,2G | 5100-5600 MHz | 30 dBm |
| 5,8G | 5600-5900 MHz | 30 dBm |
Power supply: Power supply unit (AC110V220V-DC12V)
Interference radius(60) meters at -75 dBm still depends on the strength of the signal in a given area. The shielding radius of the VHF/UHF signal should be smaller than that of the cell phone signal.
Dimensions(width, height, length) 450 x 240 x 60 mm.
Net weight: 7 kg
You can select 20 of the above frequency bands as required.
Depending on the country, we ship as standard

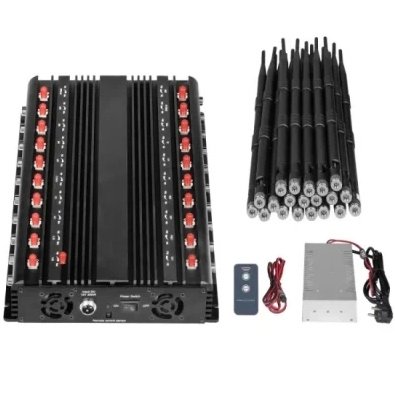

The product packaging includes:
1 * 20-band jammer
1 * 20 antennas
1 * Operating instructions
1 * Power supply unit
(The signal frequency band of the jammer is customized according to the customer's location, and the power plug is also suitable for the customer's location, including European countries such as Germany and France, and various countries such as the United States, Canada, etc., the United Kingdom and Australia).
(Handy portable models of the jammer are supplied with a car charger)
Advantages:
1, All-in-one with 20 band frequencies, including 5G cell phone 3.5G, 3.7G, 5G WIFI .....;
2, with remote control, remote switching is possible;
3, Good cooling system with 5 cooling fans inside;
4, low noise;
5, Can adjust or switch off each individual band without affecting the operation of the other bands;
6, work without interruption;
7, stable capability;
8, could be used directly in the car, with car charger;
9, total output power: 52W;
10, total weight: 7.5 kg
11, dimensions: 450 mm x 240 mm x 60 mm
12, power supply: AC 110 V/220 V and 12 V cable to the car battery;
Can jam 20 frequency bands, powerful performance
This 5G cell phone signal jammer is the world's first integrated design device. It has 20 antennas and can jam multiple frequency bands, effectively achieving full-band signal jamming. It not only supports the current common 3.5G, 3.7G and 5G WIFI signals, but also can jam common mobile communication signals such as GSM, 3G and 4G, as well as VHF, UHF, Wi-Fi, GPS (L1, L2, L5), LOJACK, 315 MHz, 433 MHz, 868 MHz and other special frequency band signals, which fully meet the requirements of various complex scenarios.
Regardless of whether it is a low-frequency signal or a high-frequency signal, this device can jam effectively. Its interference radius can reach up to 60 meters (depending on the signal strength), the interference range is long, and it has high power with a total output power of 52W, so it can achieve reliable and strong signal interference effects in any environment. This comprehensive interference capability makes it particularly suitable for use in a variety of complex and diverse application scenarios, whether in everyday locations or in specialized areas with higher signal interference requirements.
An efficient cooling system supports long-term stable operation
In order to ensure efficient operation and long-term use of the device, this 5G cell phone jammer is equipped with a powerful cooling system with five built-in high-performance cooling fans, which can quickly dissipate heat and prevent degradation or damage to device performance due to overheating. The fan operates at a low noise level, which does not affect the user experience and ensures that the device maintains stable performance even under heavy load and long working conditions. Whether it is a short application or a long continuous operation, this device can handle it easily.
The device supports continuous operation around the clock. This design is suitable for scenarios that require long-term signal interference, such as exam venues, conference rooms or other areas that require highly stable signal control. Thanks to the efficient cooling system and high-quality hardware design, this jammer has excellent performance stability and durability.
Flexible control and user-friendliness
This jammer offers flexible frequency band control functions that allow a specific frequency band to be switched on or off individually according to actual needs without affecting the operation of other frequency bands. This design is very suitable for scenarios where specific signal interference is required, e.g. situations where only the Wi-Fi frequency band is interfered with while mobile communication signals are maintained.
In addition, it is equipped with a remote control function that allows users to easily manage interference settings without having to operate the device directly, greatly improving usage efficiency. In order to improve portability and adapt to more scenarios, the jammer also supports vehicle use and is equipped with a special vehicle charger that can be directly connected to the car battery for power supply to meet the needs of users in mobile scenarios.
This 5G jammer is used in various scenarios
This 5G cell phone signal jammer is widely used in various scenarios due to its comprehensive interference frequency band design and powerful interference performance. It can be used in daily places such as conference rooms, classrooms, museums, theaters, concert halls, restaurants, etc. to effectively prevent communication interference and unnecessary signal loss. For example, in classrooms, it can prevent cheating in exams; in conference rooms, it can prevent confidential information from being leaked through communication devices.
In addition, the equipment is also suitable for some special locations, such as petrol stations and hospitals. In these special environments, users must carry out on-site tests in advance to ensure that the equipment does not interfere with the normal operation of other instruments and interfere with signals at the same time. This desktop jammer is also suitable for use in banks, factories, public transportation and other places where there are strict requirements for controlling the communication frequency.
Things to consider:
1. our jammers are tailored to specific frequency bands that are used in different countries.
2. follow the standard operating procedures (always connect the antenna before using the jammer).
3. install the antenna according to the number indicated on the device.
4. make sure that the antenna is connected before switching on the device. The indicator light will illuminate to confirm normal operation.
5. use the side switch to select the frequency band that you want to shield.
